Products

1203 products

Products

  • R740 CTO CONFIG 1 DELL EMC POWEREDGE R740 8DRV LFF 3PCI W/ 2x HS, 2x750W PSU, BROADCOM 5720 FRONT VIEW
    $1,899.99
    $1,899.99
    • DELL EMC POWEREDGE R740 8DRV LFF 3PCI W/ 2x HS, 2x750W PSU, BROADCOM 5720
    • R740 CTO CONFIG 1
    • 60 DAY WARRANTY

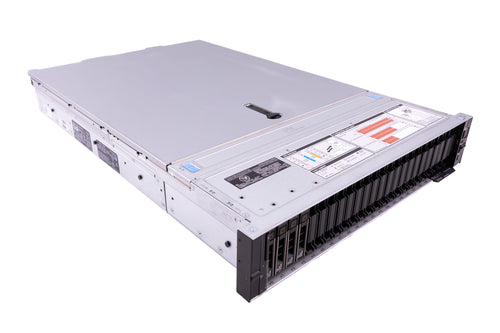

  • R740XD
    Sold out
    $2,949.00
    DELL R740XD 4x 2.5 / 24 x 2.5 CTO complete with:
    - (2) Intel Silver 4110
    - (16) 16GB 2133 DDR4 memory modules (256GB Total)
    - (2) Dell 240GB 6G SATA SSD
    - (4) Dell 960GB 6G SATA HDD
    - (2) 1100 Watt 80+ Platinum Power Supply
    - (6) High Performance Fans
    - (4) Drive Caddies
    - RAID H730P 2GB 12G
    - X550 + i350 QP CARDS
    - No Software Installed
    - Updated to latest BIOS

    Warranty:
    60 Day Warranty Parts Only



    Description

    The new Dell EMC PowerEdge R740xd server is a 2U, dual-processor platform designed to maximize storage and memory performance. Powered by Intel's new Xeon Scalable processors, this server offers up to 58 cores of performance to easily satisfy processor intensive applications. Xeon Scalable processors support NVDIMM memory modules to provide low latency and improved resiliency. Flexible storage options, and support for a mixture of drives allows administrators to create the optimal tiered storage environment for their data needs. Dell's iDRAC9 is integrated into every PowerEdge server to provide local and remote management tools to minimize the need for on-site support.

    Performance

    This dual-socket server is powered by first or second-generation Intel's new Xeon Scalable processors which offer up to 28 cores each. Xeon Scalable processors are available in four different options: Platinum, Gold, Silver, and Bronze. Xeon Platinum processors offer the highest core count and are built for I/O-intensive workloads like real-time analytics. For network communications, Intel's Omni-Path Architecture (Intel OPA) is a low-latency fabric with a 100 Gb/s link bandwidth divided into four 25 Gb/s lanes. Unlike previous generations of InfiniBand implementations, which shut down after one lane fails, Intel's OPA link continues to operate after a lane failure at 75 percent of the original bandwidth. Memory channel support has also increased from four to six channels with Intel's Xeon Scalable processors to satisfy memory-hungry applications. Data encryption overhead is almost non-existent allowing for faster performance on secure data transactions.

    Memory

    A maximum of 24 DDR4 registered (RDIMM), or load-reduced (LRDIMM) memory modules provide an impressive 3TB of memory. In order to achieve the maximum memory capacity of 3TB, the Dell R740XD server must be configured with either platinum or M-designated Gold processors. For added data protection and lower latency, administrators can opt to configure this system with one to 12 high-performance NVDIMMs. Memory speeds of up to 2933MT/s are supported, but this capability is dependent on the processor model, memory type, and memory configuration. Optane memory modules are supported but only with 2nd generation intel Xeon Scalable processors.

    Storage

    Storage options are extremely flexible with the ability to mix SSD, HDD, and NVMe drives to create the optimum data-tiered environment. In one of the configurations, up to 24 small form factor (SFF) drives sit at the front of Dell PowerEdge R740XD server, with four drive bays at the back of the chassis, and another four drives in a mid-tray for a total of 32 drive bays. Another configuration supports up to 24 NVMe drives to reduce I/O overhead and maximize storage performance, as well as two internal M.2 SSDs for super-fast failsafe boot or additional storage. An optional internal Dual SD Card Module with vFlash provides failsafe for the hypervisor and the vFLash card can store disk images used for bare metal configurations through iDRAC.

    Expansion

     In a dual-processor configuration, the Dell EMC R740xd server supports up to eight PCIe expansion cards across three risers. Several different network communications options are available depending on your choice of Network Daughter Cards (NDC) including: 4 x 1GbE, 4 x 10GbE, 2 x 25GbE, or 2 x 10GbE + 2 x 1GbE. At the front of the system there is room for a VGA port, two USB 2.0 ports, and a dedicated iDRAC direct mirco-USB port. The back of the chassis displays a VGA port, a serial port, two USB 3.0 ports, and a dedicated iDRAC network port.

    Management

    Dell's OpenManage portfolio provides this system with powerful hardware and software tools that simplify server management throughout its entire lifecycle. The OpenManage Deployment Toolkit (DTK) provides sample configuration option files that can be used to effortlessly deploy multiple servers in a timely manner. The integrated Dell Remote Access Controller 9 (iDRAC9) firmware provides advanced local and remote server management and is embedded into every PowerEdge server and starts working the minute the power and network cables are connected. Server redeployment is stress-free with Dell's System Erase, which provides a straight-forward process to wipe all data from the system's storage devices.

    Summary

    The Dell EMC PowerEdge R740xd server is built around Intel's new Xeon Scalable processors to deliver improved, workload-optimized performance for high-demand applications. Dual-processor configurations can support up to 3TB of memory and speeds of 2666MT/s can be reached, when using M-designated gold, or platinum processors. Administrators can mix and match SSDs, HDDs, and high-performance NVMe drives to create the optimal tiered storage environment for their anticipated application. The need for on-site support is reduced with Dell's integrated management tools, which provide on-site, on cloud, and remote management tools.

    PowerEdge R740xd Features

    Processor

    Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

    Memory

    24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only

    Storage

    controllers Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID)

    Drive bays Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD

    Power supplies

    Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy

    Dimensions Form factor: Rack (2U) Max depth: 715.5 mm

    Embedded management IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional

    Bezel

    Optional LCD Bezel or Security bezel

    OpenManage™ Software

    OpenManage Enterprise OpenManage Essentials OpenManage Mobile OpenManage Power Center

    Integrations and connections

    Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software

    Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management

    Security

    TPM 1.2/2.0 optional Secure Boot System Lockdown Secure erase

    I/O & Ports

    Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

    Accelerator options

    GPU and FPGA options are available only on 24 x 2.5” drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria® 10 GX See Dell.com/GPU for latest information.

    Supported operating systems

    Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi Dell.com/OSsupport
  • R740XD-CTO CONFIG 1 DELL POWEREDGE R740 24DRV 8PCI W/ 2x HS, 2x750W PSU, BRODCOM 5720, MINI MONO PERC FRONT VIEW
    Sold out
    $1,899.99
    • DELL POWEREDGE R740 24DRV 8PCI W/ 2x HS, 2x750W PSU, BRODCOM 5720, MINI MONO PERC
    • R740XD-CTO CONFIG 1
    • 60 DAY WARRANTY
  • DELL R7425 2X AMD 7601 32C 2.2GHZ CPU 512GB RAM 16X 32GB 2666V DDR4 1X NWMNX BROADCOM 57412 2X 9TMRF 1100W PLATINUM 80 PLUS AC PSU 2X 394XT 120GB SSD FRONT VIEW
    Sold out
    $10,994.95
    • DELL R7425
    • 2X AMD 7601 32C 2.2GHZ CPU
    • 512GB RAM 16X 32GB 2666V DDR4
    • 1X NWMNX BROADCOM 57412
    • 2X 9TMRF 1100W PLATINUM 80 PLUS AC PSU
    • 2X 394XT 120GB SSD
    • 60 DAY WARRANTY
  • R755K DELL 2TB 7200RPM 3.5
    Sold out
    $59.95
    • DELL 2TB 7200RPM 3.5" LFF SAS HARD DRIVE
    • R755K W/ EQ TRAY
    • 60 DAY WARRANTY

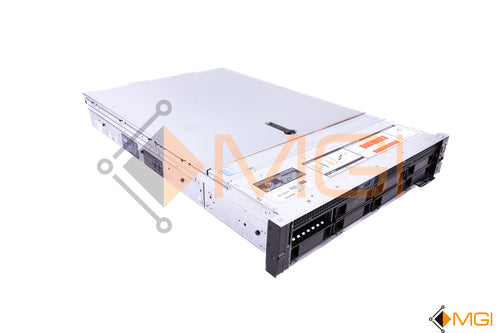

  • R7920 CTO
    Sold out
    $1,049.95

    • DELL R7920 8XLFF CTO CHASSIS W/ 2X HEATSINKS 2X 1100W PSU (NO MEMORY, PROC, HDD)

    • R7920 CTO
    • 60 DAY WARRAMTY
  • R820 CTO-1
    Sold out
    $389.95

    • DELL R820 CTO CHASSIS 8X2.5" SFF 2U SERVER 2X 1100W PSU 1X BROADCOM 5720 1X H710 (DOES NOT INCLUDE PROCESSORS MEMROY OR HARD DRIVES)

    • R820 CTO-1
    • 60 DAY WARRANTY
  • R875F DELL BROCADE 300 24-PORT 8GB FIBRE CHANNEL SWITCH FRONT VIEW
    Sold out
    $249.99
    • DELL BROCADE 300 24-PORT 8GB FIBRE CHANNEL SWITCH
    • R875F
    • 60 DAY WARRANTY
